Linear Linear Displacement Sensors Resistors Non-Contact Electronic Scales

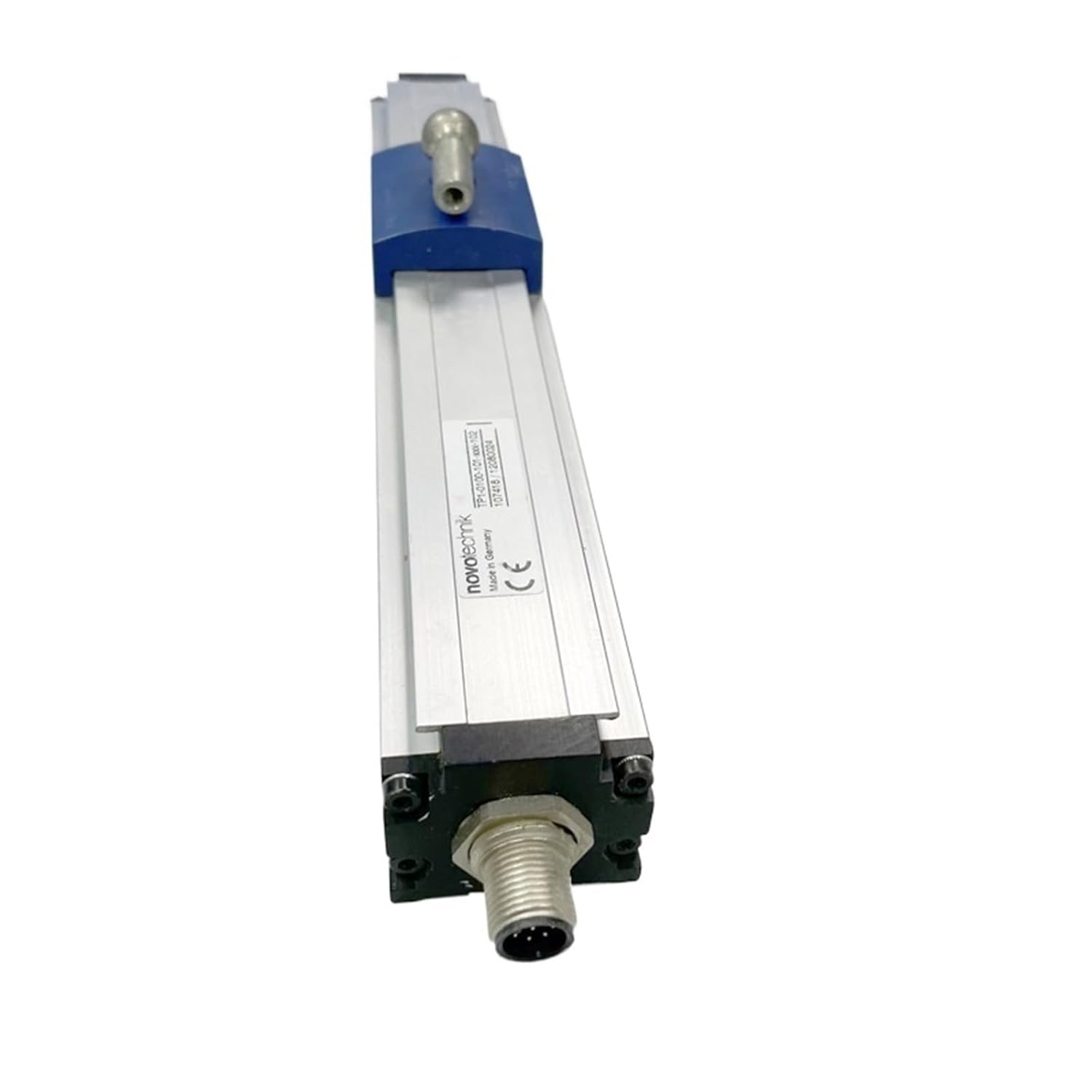

sensorLinearity : 0.02Linearity range : 4250Output type : AnalogueOperating force : -Actuator type : Non-contact hysteresis principle suspended plastic magnetsSupply Voltage : 24Mounting type : Adjustable clamp (standard)Minimum number of packages : 1Model : TP1Sensor Type : Linear Displacement SensorLinearity : 0.02 (%)Linearity range : 4250 (mm)Output type : AnalogueOperating Force : -Actuator type : Non-contact hysteresis principle suspended plastic magnetic blockSupply voltage : 24 (V)Mounting type : Adjustable clamp (standard)Minimum number of packages : 1Contact : 186 6685 4849TP1 Series Linear Displacement Sensors non-contact hysteresis principle non-contact magnetostrictive measuring principle. Can directly accurately and absolutely reflect the linear displacement commonly used in motion control positioning and measurement display and other fields. This is achieved by the use of a non-contacting suspended magnetic block so that the sensor is free of mechanical wear and tear. The acquired signal input comes from the mechanical movement of the magnet block which can either be suspended or moved along a guideway. Installation is simpler and more flexible requiring only clamping or adjustment. The core sensing element of the sensor is encapsulated in an aluminium housing which saves installation space and is resistant to for example dust. Absolute output signals are provided as standard. The combination of advanced measurement technology and robust mechanical construction This gives the product a range of up to 4250mm.Product application: product application: production and manufacturing machinery field injection moulding die casting extrusion machinery packaging machinery metal bending automation technology field.Features:-Non-contact magnetostrictive principle-Non-contact position measurement-No mechanical wear unlimited mechani

• sensor
• Angle sensor adopts the magnetic induction principle (internal non-contact type) to measure the Angle.
• It has the characteristics of no contact long life high resolution high frequency noise low temperature drift excellent linearity waterproof dustproof vibration resistance anti-interference and so on.
• Widely used in water oil vibration impact and other harsh industrial environment.
• osition measurement is an ideal product to replace optical encoder rotary transformer conductive plastic potentiometer
• If you have any questions please feel free to contact us. We will do our best to solve it for you.
