Rechargeable Digital Tone Cable Tester, WANLUTECH Tone Generator with Probe Support Optical Power Meter Visual Fault Locator PoE Test Cable Continuity Testing Port Flashing NCV (LT-300S)
4.8 (40 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211708224 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211708224 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [ OPM & VFL] WANLUTECH Rechargeable network cable tester has a 3'' screen,and has a 3.7V 2000mAh lithium battery. Built-in Optical Power Meter( OPM ), support calibrated wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, power range -70~+6dBm). Built-in Visual Fault Locator (VFL), it is used to detect fiber for breakage, cracking, bending and other faults
- [ Network Cable Tester ] WANLUTECH Digital cable tracer: searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shielded network cables. Wire map Continuity Test: test twisted pair cables continuity, identify cable open, short, cross. You can see the cable sequence, 1Gbps/100Mbps, remote kit number on the screen of the emitter, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable length measurement,It can measure the length of 1-600 meters network cable
- [ PoE Testing ] It is used to detect the POE power supply protocol, power supply wire pairs, and voltage of devices such as POE switches or POE power supplies, and real-time power of PD load devices (PoE input port connects to the switch, PoE output port connects to the PoE camera) . The protocol supports IEEE802.3bt/at/af and non-standard protocol detection

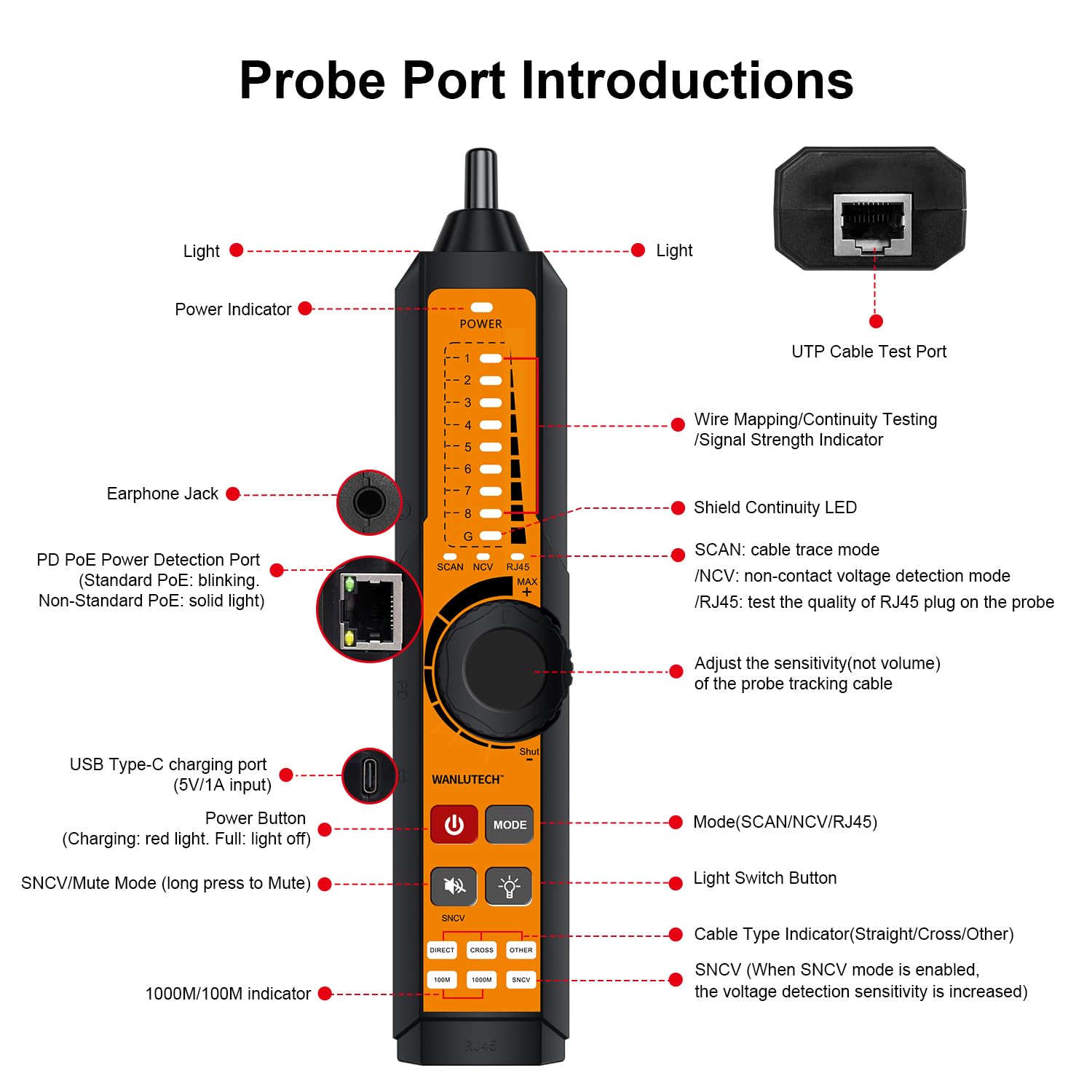

- [ Non-contact Voltage mode & Port Flashing ] When the tone probe detects AC voltage, the power-seeking indicator on the tone probe will flash and sound a beep alarm, while the 1-5 indicator on the tone probel flashes to indicate the current strength of signal. Port Flashing: switch port will flash at a fixed frequency, quickly find the switch port to which the tester is connected. At the same time, you can see the port rate 1Gbps/100Mbps/10Mbps on the screen of emitter
- [ PD Power Detection ] The PD port of the toner probe is connected to a power supply device such as a POE switch or PSE. If it is powered by the 1236 pin, the 1236 indicator on the PD port is on. If the power is supplied by the 4578 pin, the 4578 indicator on the PD port will be on. If power is supplied to both 1236 and 4578 pins, both lights are on.The status of the light is always on, it means the access is non-standard POE. The status of the light is blinking, it means the access is standard POE. It can support to test 24V and 48V POE power supply equipment
- We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
| Color | black+orange |
|---|---|
| Model | LT-300S |
| Brand Name | WANLUTECH |
| Style Name | LT-300S |
| Manufacturer | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD |
| Power Source | Battery Powered |
| Measurement Type | Cable Testing |
| Specification Met | CE, RoHS |
| Included Components | cable tester+accessories |
